| Diamètres spéciaux sur demande. |
Ferrules DIN 32676 - 1.4435 BN2 - Gamme A
| DN DIN | Gamme A | Ferrules | Obturateurs | |||||

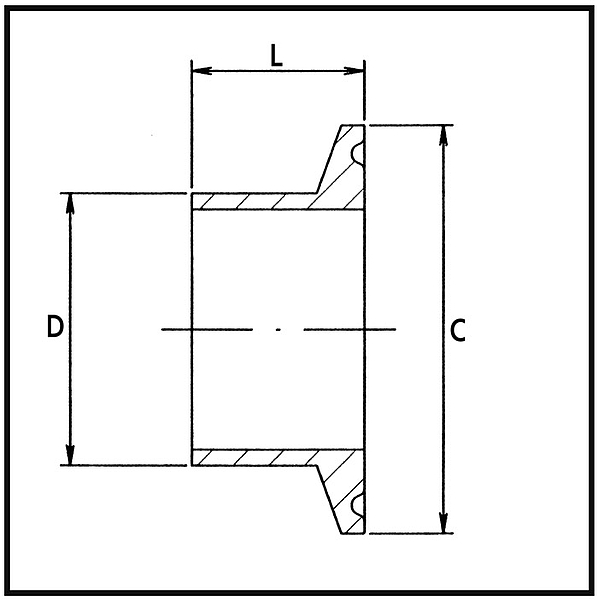

| D | L | C | No. d'article H3 | No. d'article HE3 | 1.4404 No. d'article H3 | 1.4435 No. d'article HE3 | ||
| 6 | 8x1 | 28.6 | 25 | 10508.000.006.30 | 80508.000.006.30 | 10509.012.034.30 | 10509.012.034.4070 | |
| 8 | 10x1 | 28.6 | 25 | 10508.000.008.30 | 80508.000.008.30 | 10509.012.034.30 | 10509.012.034.4070 | |
10 | 13x1.5 | 28.6 | 34 | 10508.000.010.30 | 80508.000.010.30 | 10509.010.020.30 | 10509.010.020.4070 | |
| 15 | 19x1.5 | 28.6 | 34 | 10508.000.015.30 | 80508.000.015.30 | 10509.010.020.30 | 10509.010.020.4070 | |
| 20 | 23x1.5 | 28.6 | 34 | 10508.000.020.30 | 80508.000.020.30 | 10509.010.020.30 | 10509.010.020.4070 | |
| 25 | 29x1.5 | 28.6 | 50.5 | 10508.000.025.30 | 80508.000.025.30 | 10509.100.112.30 | 10509.100.112.4070 | |
| 32 | 35x1.5 | 28.6 | 50.5 | 10508.000.032.30 | 80508.000.032.30 | 10509.100.112.30 | 10509.100.112.4070 | |
| 40 | 41x1.5 | 28.6 | 50.5 | 10508.000.040.30 | 80508.000.040.30 | 10509.100.112.30 | 10509.100.112.4070 | |
| 50 | 53x1.5 | 28.6 | 64 | 10508.000.050.30 | 80508.000.050.30 | 10509.000.200.30 | 10509.000.200.4070 | |
| 65 | 70x2.0 | 28 | 91 | 10508.000.065.30 | 80508.000.065.30 | 10509.000.300.30 | 10509.000.300.4070 | |
| 80 | 85x2.0 | 28 | 106 | 10508.000.080.30 | 80508.000.080.30 | 10509.000.080.30 | 10509.000.080.4070 | |
| 100 | 104x2.0 | 28 | 119 | 10508.000.100.30 | 80508.000.100.30 | 10509.000.400.30 | 10509.000.400.4070 | |
| 125* | 129x2.0 | 28 | 155 | 10508.000.125.30 | 80508.000.125.30 | 10509.000.125.30 | 10509.000.125.4070 | |
| 150* | 154x2.0 | 28 | 183 | 10508.000.150.30 | 80508.000.150.30 | 10509.000.150.30 | 10509.000.150.4070 | |
| 200* | 204x2.0 | 28 | 233.5 | 10508.000.200.30 | 80508.000.200.30 | 10509.DIN.200.30 | 10509.DIN.200.4070 | |
* = Matière 1.4435 sur demande
Ferrules DIN 32676 - 1.4435 BN2 - Gamme B
DN | Reihe B | Ferrules | Obturateurs | |||||
| D | L | C | No. d'article H3 | No. d'article HE3 | 1.4404 No. d'article H3 | 1.4435 No. d'article HE3 | ||
| 6 | 10.2x1.6 | 28.6 | 25 | 10517.006.025.30 | 80517.006.025.30 | 10509.012.034.30 | 10509.012.034.4070 | |
| 8 | 13.5x1.6 | 28.6 | 25 | 10517.008.025.30 | 80517.008.025.30 | 10509.012.034.30 | 10509.012.034.4070 | |
| 8* | 13.5x1.6 | 28.6 | 34 | 10517.008.034.30 | 80517.008.034.30 | 10509.010.020.30 | 10509.010.020.4070 | |
| 8* | 13.5x1.6 | 28.6 | 50.5 | 10517.008.050.30 | 80517.008.050.30 | 10509.100.112.30 | 10509.100.112.4070 | |
| 10 | 17.2x1.6 | 28.6 | 25 | 10517.010.025.30 | 80517.010.025.30 | 10509.012.034.30 | 10509.012.034.4070 | |
| 10* | 17.2x1.6 | 28.6 | 34 | 10517.010.034.30 | 80517.010.034.30 | 10509.010.020.30 | 10509.010.020.4070 | |
| 10* | 17.2x1.6 | 28.6 | 50.5 | 10517.010.050.30 | 80517.010.050.30 | 10509.100.112.30 | 10509.100.112.4070 | |
| 15* | 21.3x1.6 | 28.6 | 34 | 10517.015.034.30 | 80517.015.034.30 | 10509.010.020.30 | 10509.010.020.4070 | |
| 15 | 21.3x1.6 | 28.6 | 50.5 | 10517.015.050.30 | 80517.015.050.30 | 10509.100.112.30 | 10509.100.112.4070 | |
| 20 | 26.9x1.6 | 28.6 | 50.5 | 10517.020.050.30 | 80517.020.050.30 | 10509.100.112.30 | 10509.100.112.4070 | |
| 25 | 33.7x2.0 | 28.6 | 50.5 | 10517.025.050.30 | 80517.025.050.30 | 10509.100.112.30 | 10509.100.112.4070 | |
| 32* | 42.4x2.0 | 28.6 | 50.5 | 10517.032.050.30 | 80517.032.050.30 | 10509.100.112.30 | 10509.100.112.4070 | |
| 32 | 42.4x2.0 | 28.6 | 64 | 10517.032.064.30 | 80517.032.064.30 | 10509.000.200.30 | 10509.000.200.4070 | |
| 40 | 48.3x2.0 | 28.6 | 64 | 10517.040.064.30 | 80517.040.064.30 | 10509.000.200.30 | 10509.000.200.4070 | |
| 50 | 60.3x2.0 | 28.6 | 77.5 | 10517.050.077.30 | 80517.050.077.30 | 10509.000.212.30 | 10509.000.212.4070 | |
| 65 | 76.1x2.0 | 28.6 | 91 | 10517.065.091.30 | 80517.065.091.30 | 10509.000.300.30 | 10509.000.300.4070 | |
| 80 | 88.9x2.3 | 28.6 | 106 | 10517.080.106.30 | 80517.080.106.30 | 10509.000.080.30 | 10509.000.080.4070 | |
| 100 | 114.3x2.3 | 28.6 | 130 | 10517.100.130.30 | 80517.100.130.30 | 10509.100.130.30 | 10509.100.130.4070 | |
| 125** | 139.7x2.6 | 28.6 | 155 | 10517.125.155.30 | 80517.125.155.30 | 10509.000.125.30 | 10509.000.125.4070 | |
| 150** | 168.3x2.6 | 28.6 | 183 | 10517.150.183.30 | 80517.150.183.30 | 10509.000.150.30 | 10509.000.150.4070 | |
| 200** | 219.1x2.6 | 28.6 | 233.5 | 10517.200.233.30 | 80517.200.233.30 | 10509.DIN.200.30 | 10509.DIN.200.4070 | |
* = Dimensions spéciales / ** = Matière 1.4435 sur demande
Ferrules DIN 32676 - 1.4404 / 316L - Gamme C
| DN ASME-BPE | Gamme C | Ferrules | Obturateurs | |||||
| D | L | C | No. d'article H3 | No. d'article HE3 | No. d'article H3 | No. d'article HE3 | ||
| 1/4" | 6.35x0.89 | 28.6 | 25 | 10702.118.014.30 | 80702.118.014.30 | 10509.012.034.30 | 10509.012.034.4070 | |
| 3/8" | 9.53x0.89 | 28.6 | 25 | 10702.118.038.30 | 80702.118.038.30 | 10509.012.034.30 | 10509.012.034.4070 | |
| 1/2" | 12.7x1.65 | 28.6 | 25 | 10702.118.012.30 | 80702.118.012.30 | 10509.012.034.30 | 10509.012.034.4070 | |
| 3/4" | 19.05x1.65 | 28.6 | 25 | 10702.118.034.30 | 80702.118.034.30 | 10509.012.034.30 | 10509.012.034.4070 | |
| 1" | 25.4x1.65 | 28.6 | 50.5 | 10702.118.100.30 | 80702.118.100.30 | 10509.100.112.30 | 10509.100.112.4070 | |
| 1 1/2" | 38.1x1.65 | 28.6 | 50.5 | 10702.118.112.30 | 80702.118.112.30 | 10509.100.112.30 | 10509.100.112.4070 | |
| 2" | 50.8x1.65 | 28.6 | 64 | 10702.118.200.30 | 80702.118.200.30 | 10509.000.200.30 | 10509.000.200.4070 | |
| 2 1/2" | 63.5x1.65 | 28.6 | 77.5 | 10702.118.212.30 | 80702.118.212.30 | 10509.000.212.30 | 10509.000.212.4070 | |
| 3" | 76.2x1.65 | 28.6 | 91 | 10702.118.300.30 | 80702.118.300.30 | 10509.000.300.30 | 10509.000.300.4070 | |
| 4" | 101.6x2.11 | 28.6 | 119 | 10702.118.400.30 | 80702.118.400.30 | 10509.000.400.30 | 10509.000.400.4070 | |
| 6" | 152.4x2.77 | 28.6 | 167 | 10702.118.600.30 | 80702.118.600.30 | 10509.000.167.30 | 10509.000.167.4070 | |
Ferrules DIN 32676 - 1.4435 BN2 - Gamme C
| DN ASME-BPE | Gamme C | Ferrules | Obturateurs | ||||
| D | L | C | No. d'article H3 | No. d'article HE3 | No. dârticle HE3 | ||
| 1/4" | 6.35x0.89 | 28.6 | 25 | sur demande | sur demande | 10509.012.034.4070 | |
| 3/8" | 9.53x0.89 | 28.6 | 25 | sur demande | sur demande | 10509.012.034.4070 | |
| 1/2" | 12.7x1.65 | 28.6 | 25 | 10703.000.012.30 | 80703.000.012.30 | 10509.012.034.4070 | |
| 3/4" | 19.05x1.65 | 28.6 | 25 | 10703.000.034.30 | 80703.000.034.30 | 10509.012.034.4070 | |
| 1" | 25.4x1.65 | 28.6 | 50.5 | 10703.000.100.30 | 80703.000.100.30 | 10509.100.112.4070 | |
| 1 1/2" | 38.1x1.65 | 28.6 | 50.5 | 10703.000.112.30 | 80703.000.112.30 | 10509.100.112.4070 | |
| 2" | 50.8x1.65 | 28.6 | 64 | 10703.000.200.30 | 80703.000.200.30 | 10509.000.200.4070 | |
| 2 1/2" | 63.5x1.65 | 28.6 | 77.5 | 10703.000.212.30 | sur demande | 10509.000.212.4070 | |
| 3" | 76.2x1.65 | 28.6 | 91 | sur demande | sur demande | 10509.000.300.4070 | |
| 4" | 101.6x2.11 | 28.6 | 119 | sur demande | sur demande | 10509.000.400.4070 | |
| 6" | 152.4x2.77 | 28.6 | 167 | sur demande | sur demande | 10509.000.167.4070 | |
Ferrules DIN 32676 - Hastelloy C-22 (2.4602)
| DN ASME-BPE | Gamme C | Ferrules | Obturateurs | |||||
| D | L | C | No. d'article | No. d'article | No. d'article SF1 | No. d'article SF4 | ||
| 1/2" | 12.7x1.65 | 28.6 | 25 | 24602.TCS.012.30 | sur demande | 24602.TCD.025.30 | sur demande | |
| 3/4" | 19.05x1.65 | 28.6 | 25 | 24602.TCS.034.30 | sur demande | 24602.TCD.025.30 | sur demande | |
| 1" | 25.4x1.65 | 28.6 | 50.5 | 24602.TCS.100.30 | sur demande | 24602.TCD.050.30 | sur demande | |
| 1 1/2" | 38.1x1.65 | 28.6 | 50.5 | 24602.TCS.112.30 | sur demande | 24602.TCD.050.30 | sur demande | |
| 2" | 50.8x1.65 | 28.6 | 64 | 24602.TCS.200.30 | sur demande | 24602.TCD.064.30 | sur demande | |
| Diamètres spéciaux sur demande. |
