Reduzierungen DIN 11852

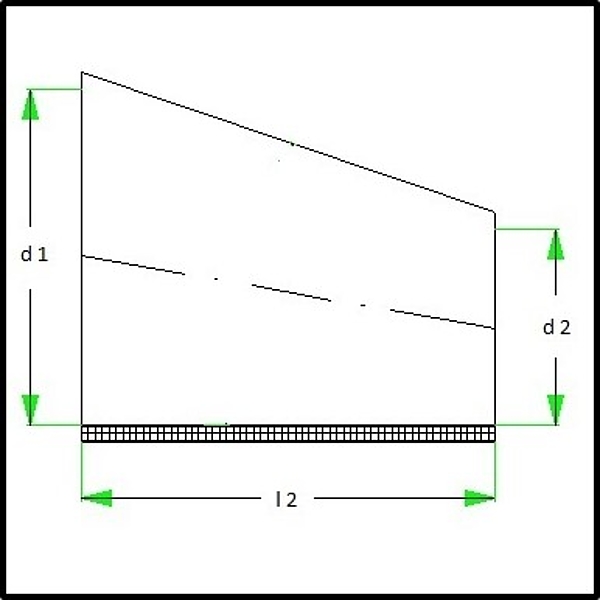

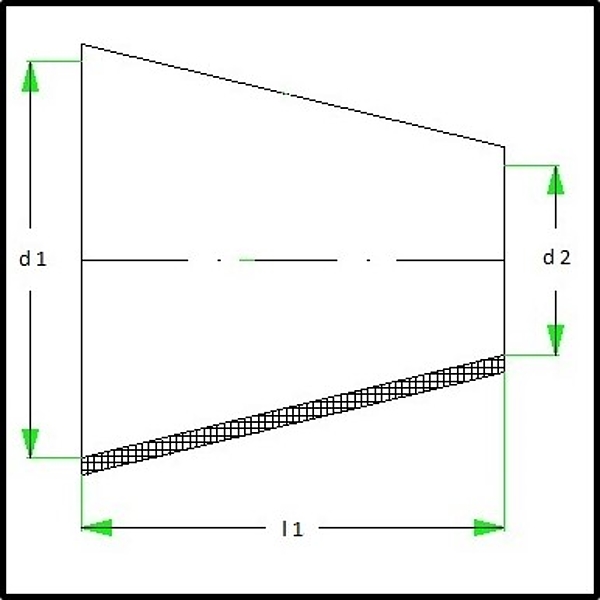

NW	d1	d2	konzentrisch "RK"		exzentrisch "RE"
			l1	Art.-Nr. 1.4307/1.4404	l2	Art.-Nr. 1.4307/1.4404
15/10	16	10	11	10133.015.010.10/30	16.5	10141.015.010.10/30
20/10	20	10	18	10133.020.010.10/30	27.5	10141.020.010.10/30
20/15	20	16	7	10133.020.015.10/30	11	10141.020.015.10/30
25/15	26	16	18	10133.025.015.10/30	27.5	10141.025.015.10/30
25/20	26	20	11	10133.025.020.10/30	16.5	10141.025.020.10/30
32/20	32	20	22	10133.032.020.10/30	33	10141.032.020.10/30
32/25	32	26	11	10133.032.025.10/30	16.5	10141.032.025.10/30
40/15	38	16	39	10133.040.015.10/30	60.5	10141.040.015.10/30
40/20	38	20	33	10133.040.020.10/30	49.5	10141.040.020.10/30
40/25	38	26	22	10133.040.025.10/30	33	10141.040.025.10/30
40/32	38	32	11	10133.040.032.10/30	16.5	10141.040.032.10/30
50/25	50	26	44	10133.050.025.10/30	66	10141.050.025.10/30
50/32	50	32	33	10133.050.032.10/30	49.5	10141.050.032.10/30
50/40	50	38	22	10133.050.040.10/30	33	10141.050.040.10/30
65/25	66	26	73	10133.065.025.10/30	110	10141.065.025.10/30
65/40	66	38	51	10133.065.040.10/30	77	10141.065.040.10/30
65/50	66	50	29	10133.065.050.10/30	44	10141.065.050.10/30
80/50	81	50	56	10133.080.050.10/30	85	10141.080.050.10/30
80/65	81	66	27	10133.080.065.10/30	41.2	10141.080.065.10/30
100/50	100	50	90	10133.100.050.10/30	137.5	10141.100.050.10/30
100/65	100	66	61	10133.100.065.10/30	93.5	10141.100.065.10/30
100/80	100	81	34	10133.100.080.10/30	52.5	10141.100.080.10/30
125/80	125	81	79	10133.125.080.10/30	121	10141.125.080.10/30
125/100	125	100	45	10133.125.100.10/30	68.5	10141.125.100.10/30
150/100	150	100	90	10133.150.100.10/30	137.5	10141.150.100.10/30
150/125	150	125	45	10133.150.125.10/30	68.5	10141.150.125.10/30
200/150	200	150	90	10133.200.150.10/30	-	auf Anfrage

Sondersprünge auf Anfrage.

Reduzierungen SMS - 1.4404

NW		d1	d2	konzentrisch		exzentrisch
SMS	Zoll
				l1	Art.-Nr.	l2	Art.-Nr.
38/25	1 1/2"/1"	35.6	22.6	39	10134.112.100.34	37.9	10143.112.100.30
51/25	2"/1"	48.6	22.6	77.4	10134.200.100.34	75.5	10143.200.100.30
51/38	2"/1 1/2"	48.6	35.6	40.5	10134.200.112.34	39.6	10143.200.112.30
63.5/25	2 1/2"/1"	60.5	22.6	74	10134.212.100.34	-	auf Anfrage
63.5/38	2 1/2"/1 1/2"	60.5	35.6	76.4	10134.212.112.34	71	10143.212.112.30
63.5/51	2 1/2"/2"	60.5	48.6	37.4	10134.212.200.34	36.3	10143.212.200.30
76/38	3"/1 1/2"	72	35.6	68.8	10134.300.112.34	104	10143.300.112.30
76/51	3"/2"	72	48.6	72	10134.300.200.34	70.2	10143.300.200.30
76/63.5	3"/2 1/2"	72	60.5	35.7	10134.300.212.34	35.8	10143.300.212.30
101.6/51	4"/2"	97.6	48.6	94.7	10134.400.200.34	146.5	10143.400.200.30
101.6/63.5	4"/2 1/2"	97.6	60.5	105	10134.400.212.34	100	10143.400.212.30
101.6/76	4"/3"	97.6	72	77.6	10134.400.300.34	76.1	10143.400.300.30

Sondersprünge auf Anfrage.
