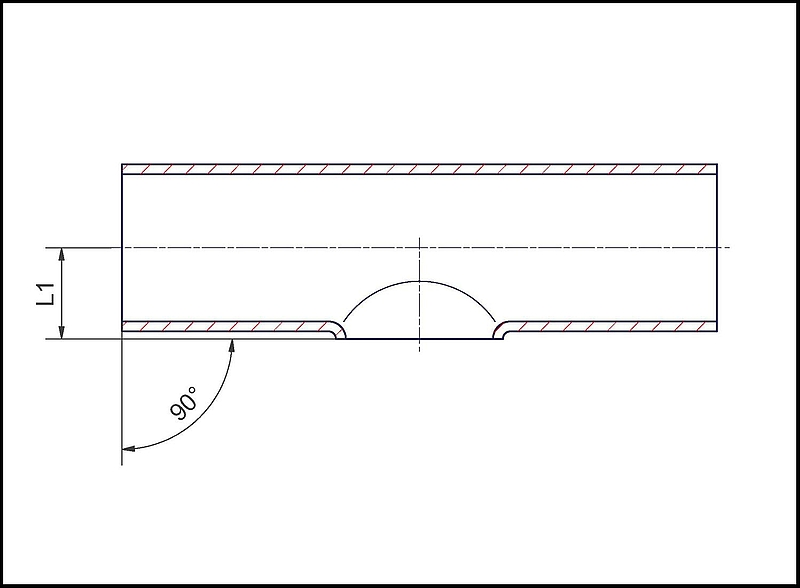

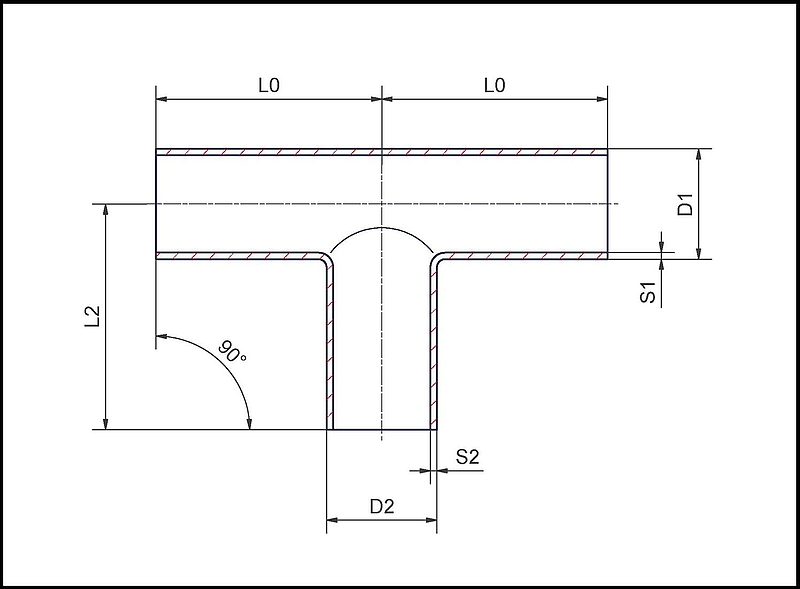

Tés DIN 11852

DN DIN	Dimension				L0	L1	L2	No. d'article 1.4307	No. d'article 1.4404
	D1	S1	D2	S2
10	13	1.5	13	1.5	26	-	26	20046.000.013.10	20046.000.013.30
15/10	19	1.5	13	1.5	35	10.5	-	20048.019.013.10	20048.019.013.30
15	19	1.5	19	1.5	35	-	35	20046.000.019.10	20046.000.019.30
20/10	23	1.5	13	1.5	40	12.5	-	20048.023.013.10	20048.023.013.30
20/15	23	1.5	19	1.5	40	13	-	20048.023.019.10	20048.023.019.30
20	23	1.5	23	1.5	40	-	40	20046.000.023.10	20046.000.023.30
25/15	29	1.5	19	1.5	50	16	-	20048.029.019.10	20048.029.019.30
25/20	29	1.5	23	1.5	50	16	-	20048.029.023.10	20048.029.023.30
25	29	1.5	29	1.5	50	-	50	20046.000.029.10	20046.000.029.30
32/15	35	1.5	19	1.5	55	19	-	20048.035.019.10	20048.035.019.30
32/20	35	1.5	23	1.5	55	19	-	20048.035.023.10	20048.035.023.30
32/25	35	1.5	29	1.5	55	19	-	20048.035.029.10	20048.035.029.30
32	35	1.5	35	1.5	55	-	55	20046.000.035.10	20046.000.035.30
40/20	41	1.5	23	1.5	60	22	-	20048.041.023.10	20048.041.023.30
40/25	41	1.5	29	1.5	60	22	-	20048.041.029.10	20048.041.029.30
40/32	41	1.5	35	1.5	60	22.5	-	20048.041.035.10	20048.041.035.30
40	41	1.5	41	1.5	60	-	60	20046.000.041.10	20046.000.041.30
50/25	53	1.5	29	1.5	70	28	-	20048.053.029.10	20048.053.029.30
50/32	53	1.5	35	1.5	70	28.5	-	20048.053.035.10	20048.053.035.30
50/40	53	1.5	41	1.5	70	29	-	20048.053.041.10	20048.053.041.30
50	53	1.5	53	1.5	70	-	70	20046.000.053.10	20046.000.053.30
65/32	70	2.0	35	1.5	80	37	-	20048.065.035.10	20048.065.035.30
65/40	70	2.0	41	1.5	80	37.5	-	20048.065.041.10	20048.065.041.30
65/50	70	2.0	53	1.5	80	38.5	-	20048.065.053.10	20048.065.053.30
65	70	2.0	70	2.0	80	-	80	20046.000.065.10	20046.000.065.30
80/40	85	2.0	41	1.5	90	45	-	20048.080.041.10	20048.080.041.30
80/50	85	2.0	53	1.5	90	46	-	20048.080.053.10	20048.080.053.30
80/65	85	2.0	70	2.0	90	47.5	-	20048.080.065.10	20048.080.065.30
80	85	2.0	85	2.0	90	-	90	20046.000.080.10	20046.000.080.30
100/50	104	2.0	53	1.5	100	55.5	-	20048.100.053.10	20048.100.053.30
100/65	104	2.0	70	2.0	100	57	-	20048.100.065.10	20048.100.065.30
100/80	104	2.0	85	2.0	100	57	-	20048.100.080.10	20048.100.080.30
100	104	2.0	104	2.0	100	-	100	20046.000.100.10	20046.000.100.30
125/65	129	2.0	70	2.0	187.5	69.5	-	20048.125.065.10	20048.125.065.30
125/80	129	2.0	85	2.0	187.5	69.5	-	20048.125.080.10	20048.125.080.30
125/100	129	2.0	104	2.0	187.5	70.5	-	20048.125.100.10	20048.125.100.30
125	129	2.0	129	2.0	187.5	-	187.5	20046.000.125.10	20046.000.125.30
150/80	154	2.0	85	2.0	225	82	-	20048.150.080.10	20048.150.080.30
150/100	154	2.0	104	2.0	225	83	-	20048.150.100.10	20048.150.100.30
150/125	154	2.0	129	2.0	225	86.5	-	20048.150.125.10	20048.150.125.30
150	154	2.0	154	2.0	225	-	225	20046.000.150.10	20046.000.150.30

Forme TSK, RTS, DN 200 et tés réduits spéciaux sur demande.

Tés SMS

DN		Dimension				L0	L1	L2	No. d'article 1.4404
SMS	Pouce	D1	S1	D2	S2
25	1"	25	1.2	25	1.2	55	-	55	20106.000.100.30
38/25	1 1/2"/1"	38	1.2	25	1.2	70	21	-	20105.112.100.30
38	1 1/2"	38	1.2	38	1.2	70	-	70	20106.000.112.30
51/25	2"/1"	51	1.2	25	1.2	82	29	-	20105.200.100.30
51/38	2"/1 1/2"	51	1.2	38	1.2	82	29	-	20105.200.112.30
51	2"	51	1.2	51	1.2	82	-	82	20106.000.200.30
65.5/38	2 1/2"/1 1/2"	63.5	1.6	38	1.2	105	36	-	20105.212.112.30
63.5/51	2 1/2"/2"	63.5	1.6	51	1.2	105	36	-	20105.212.200.30
63.5	2 1/2"	63.5	1.6	63.5	1.6	105	-	105	20106.000.212.30
76/38	3"/1 1/2"	76.1	1.6	38	1.2	110	44	-	20105.300.112.30
76/51	3"/2"	76.1	1.6	51	1.2	110	44	-	20105.300.200.30
76/63.5	3"/2 1/2"	76.1	1.6	63.5	1.6	110	44	-	20105.300.212.30
76	3"	76.1	1.6	76.1	1.6	110	-	110	20106.000.300.30
101.6	4"	101.6	2.0	101.6	2.0	150	-	150	20106.000.400.30

Autres tés réduits sur demande.
